BV01-DIN3357 F4/F5 BALL VALVE

Technical Specification:

Size: DN50-DN250

Pressure: F4/F5

Design& Manufacture:DIN3357

Face to face:DIN3202 DN50-DN100 F4/14

DN125-DN250 F5/15

Flanges:EN1092-2 PN16

Mounting pad:ISO5211

Hydraulic test:ISO 5208

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Cast iron body

• Stainless steel stem

• Flange ends

• Color:RAL5017

• Hand Lever operated

• ISO Mounting pad available

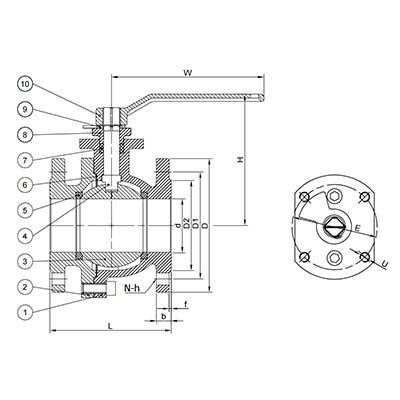

_0014_BV01 DIN3357 F4F5 drawing


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Bonnet

Ductile Iron GGG50

3

Ball

SS304

4

Stem

SS304

5

Seat

PTFE

6

Gasket

PTFE

7

Stem Packing

PTFE

8

Gland flange

Ductile Iron GGG50

9

Stop collar

Carbon Steel

10

Handle

Ductile Iron GGG50


■ Dimensions (mm)

Size

L

D

EN 1092-2 PN16

b

f

H

W

D1

D2

n-d

DN50

150

165

125

102

4-18

20

3

146

250

DN65

170

185

145

122

4-18

20

3

176

350

DN80

180

200

160

138

8-18

22

3

222

350

DN100

190

220

180

158

8-18

24

3

230

400

DN125

325

250

210

188

8-18

26

3

260

600

DN150

350

285

240

212

8-23

26

3

280

600

DN200

400

340

295

268

12-23

30

3

-

-

DN250

450

405

355

320

12-26

32

3

-

-
