GV01-DIN3356 F1 DIN3202 F1 PN16 Globe Valve

Technical Specification:

Size: DN40-DN300

Pressure:F1 PN16

Design:DIN3356

Face to Face: DIN3202 F1

Flanges:EN1092-2 PN16

Hydraulic test: ISO 5208

Seat Test:17.6bar

Shell Test:24bar

share:
Product Details
■ Features:
• Bolted Bonnet

• Clockwise closing direction

• Graphite packing

• Max. temperature 178 ºC

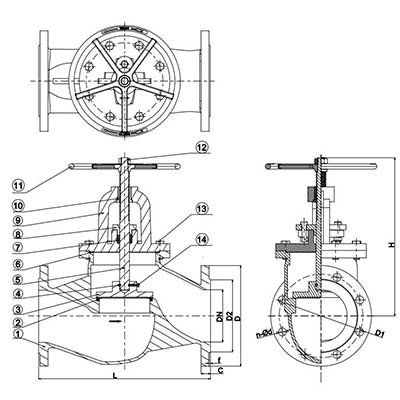

_0038_GV01-DIN3356 F1 drawing


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Seat Rings

Brass/Stainless Steel

3

Disc

DI GGG50 / 2Cr13

4

Steel ball

SS304

5

Stem

SS410

6

Gasket

Graphite

7

Packing

Graphite

8

Gland

Ductile Iron GGG50

9

Bonnet

Ductile Iron GGG50

10

Nut

Brass

11

Hand Wheel

Ductile Iron GGG50

12

Hex Nut

Carbon Steel

13

Bolts

Carbon Steel

14

Bolt

Carbon Steel


■ Dimensions (mm)

Size

L

D

b

EN1092-2 PN16

H

W

W.T(kg )

D1

D2

n-d

DN40

200

150

19

110

87

4-19

200

160

9.5

DN50

230

165

19

125

97

4-19

220

160

12

DN65

290

185

19

145

122

4-19

250

160

17

DN80

310

200

19

160

137

8-19

300

160

23

DN100

350

220

19

180

157

8-19

350

200

31

DN125

400

250

19

210

187

8-19

400

250

58

DN150

480

285

19

240

213

8-23

480

250

74

DN200

600

340

20

295

268

12-23

500

250

134

DN250

730

405

22

355

323

12-28

-

320

169

DN300

850

460

24.5

410

378

12-28

-

320

-
