EJ01-Fland End Expansion Joint Flange End

Technical Specification:

Size: DN32-DN600

Pressure:EJ01-Fland

Working Pressure:1.6Mpa (16kg/CM²)

Breaking Pressure:4.8Mpa(48kg/CM²)

Temperature:-20℃ to+115℃

Application:Fresh Water,Sea Water,Hot Water,Air and Gas

share:
Product Details
■ Features:
• Rubber bellow:EPDM,NBR

• Forged steel flanges:EN1092-1,DIN,JIS,GOST,ANSI etc.

• Both Single Sphere and Double Sphere available

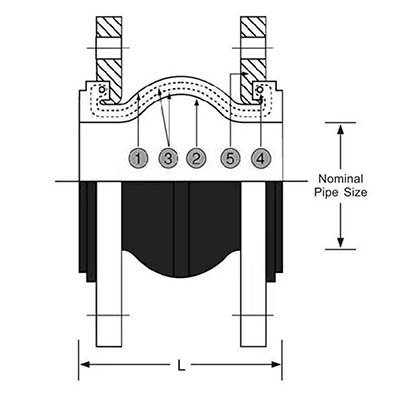

_0003_EJ01-Flange End 1


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Bellow

EPDM / NBR

2

Flanges

Forged Steel

3

Reinforcement

Nylon Tyre Cord

4

Reinforcing Wire

Spring Steel Wire


■ Dimensions (mm)

Size


L

Axial Elongation

Axial Compression

Lateral Movement

Angular Movementα1+α2

这一列删除

mm

inch

DN32

1 1/4”

95/130/152

+9.5

-13

±13

±15°


DN40

1 1/2”

95/130/152

+9.5

-13

±13

±15°


DN50

2”

105/130/152

+9.5

-13

±13

±15°


DN65

2 1/2”

115/130/152

+9.5

-13

±13

±15°


DN80

3”

130/152

+9.5

-13

±13

±15°


DN100

4”

130/152

+9.5

-16

±13

±15°


DN125

5”

130/152/170

+9.5

-16

±13

±15°


DN150

6”

130/152/180

+9.5

-16

±13

±15°


DN200

8”

130/152/205

+9.5

-16

±13

±15°


DN250

10”

130/203/240

+13

-16

±19

±15°


DN300

12”

130/203/260

+13

-19

±19

±15°


DN350

14”

203/265

+13

-19

±19

±15°


DN400

16”

203/265

+13

-19

±19

±15°


DN450

18”

203/265

+13

-19

±19

±15°


DN500

20”

203/265

+13

-19

±19

±15°


DN600

24”

265

+13

-19

±19

±15°
