EJ02-Thread End Expansion Joint Thread End

Technical Specification:

Size: DN15-DN400

Pressure: 01-Y Type

Connection Type:BSP,NPT Female threaded to ISO228-1

Movement:

-Lc:Axial compression

-Le:Axial extension

-Li:Lateral movement

share:
Product Details
■ Features:

• Rubber bellow

• Female cast iron 3pcs BSP threaded union ends galvanized cast iron

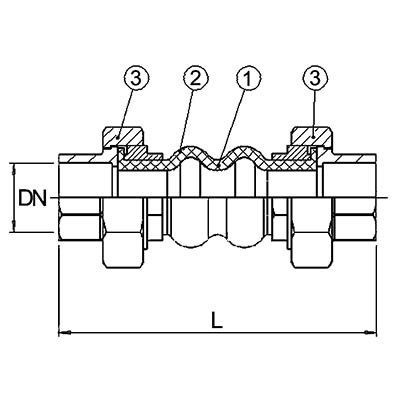

_0002_EJ02-Thread End 1


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Bellow

EPDM Rubber

2

Union

Galvanized Cast Iron

3

Reinforcement

Nylon Tyre Cord


■ Dimensions (mm)

Size


L

Lc

Le

Li

Weights(kg)

mm

inch

DN20

3/4”

203

22

6

22

45°

0.66

DN25

1”

203

22

6

22

45°

1.07

DN32

1 1/4”

203

22

6

22

45°

1.44

DN40

1 1/2”

203

22

6

22

45°

1.69

DN50

2”

203

22

6

22

45°

2.50

DN65

2 1/2”

220

22

6

22

45°

4.1

DN80

3”

220

22

6

22

45°

5.3
