Strainer 01-Y Type Y Strainer flange end

Technical Specification:

Size: DN15-DN400

Pressure: 01-Y Type

Face to Face:DIN3202 F1

Flanges:EN1092-2 PN16

Hydraulic test:ISO 5208

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Y-Pattern

• Stainless Steel Screen

• Bolted Cover

• Flange Ends

• Surface treatment:RAL5017 FBE Coated

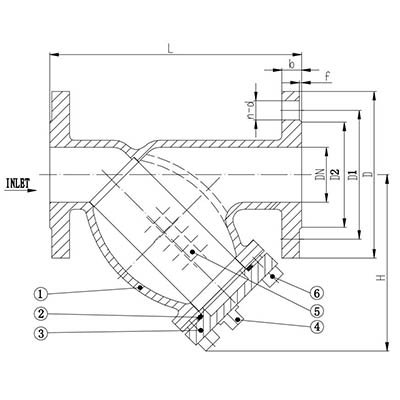

_0024_Strainer 01-Y Type drawing 1


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

CI GG25/DI GGG50

2

Gasket

Graphite

3

Cover

CI GG25/DI GGG50

4

Plug

Steel zinc plated

5

Screen

SS304

6

Bolts

Steel Rst37-2


■ Dimensions (mm)

Size

L

D

b

EN 1092-2 PN16

H

f

Plug
(BSP)

W.T(kg )

D1

D2

n-d

DN15

130

95

14

65

46

4-14

75

2

1/4

2.4

DN20

150

105

16

75

56

4-14

90

2

1/4

2.8

DN25

160

115

16

85

65

4-14

90

3

1/4

3.6

DN32

180

140

18

100

76

4-19

100

3

1/4

5.5

DN40

200

150

19

110

84

4-19

110

3

1/2

7.0

DN50

230

165

20

125

99

4-19

130

3

1/2

9.5

DN65

290

182

20

145

118

4-19

145

3

1/2

13

DN80

310

200

22

160

132

8-19

170

3

1/2

16

DN100

350

220

24

180

156

8-19

200

3

1/2

23

DN125

400

250

26

210

184

8-19

240

3

1/2

31

DN150

480

285

26

240

211

8-23

275

3

1/2

45

DN200

600

340

30

295

266

12-23

350

3

1/2

85

DN250

730

405

32

355

319

12-28

430

3

3/4

130

DN300

850

460

32

410

370

12-28

540

4

3/4

168

DN350

980

520

28

470

429

16-28

630

4

1

250

DN400

1100

580

28

525

480

16-31

730

4

1

350
