Strainer 02-Basket Type Basket Strainer

Technical Specification:

Size: DN50-DN800

Pressure: 02-Basket Type

Face to Face:DIN3202 F1

Flanges:EN1092-2 PN16

Hydraulic test:ISO 5208

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Basket type

• Stainless Steel Screen

• Bolted Cover

• Flange Ends

• Surface treatment:RAL5017 FBE Coated

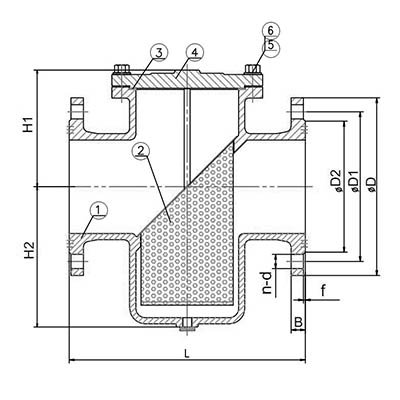

_0022_Strainer 02-Basket Type


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

CI GG25/DI GGG50

2

Screen

SS304

3

Gasket

Graphite

4

Cover

CI GG25/DI GGG50

5

Bolts

Steel Rst37-2

6

Washer

Steel zinc plated


■ Dimensions (mm)

Size

L

D

B

EN 1092-2 PN16

f

H1

H2

D1

D2

n-d

DN50

207

165

19

125

99

4-Φ19

3

114

98

DN65

210

185

19

145

119

4-Φ19

3

129

112

DN80

251

200

19

160

134

8-Φ19

3

142

125

DN100

292

220

19

180

156

8-Φ19

3

165

160

DN125

334

250

19

210

184

8-Φ19

3

173

185

DN150

378

285

19

240

211

8-Φ23

3

165

235

DN200

475

340

20

295

266

12-Φ23

3

215

295

DN250

511

405

22

355

319

12-Φ28

3

325

340

DN300

680

460

24.5

410

370

12-Φ28

3

281

405

DN350

769

520

26.5

470

431

16-Φ28

4

345

585

DN400

842

580

28

525

482

16-Φ31

4

390

590

DN450

890

640

30

585

540

20-Φ31

4

402

628

DN500

900

715

31.5

650

611

20-Φ34

4

441

696

DN600

1000

840

36

770

710

20-Φ37

5

523

834

DN700

1130

910

39.5

840

779

24-Φ37

5

680

971

DN800

1250

1025

43

950

885

24-Φ41

5

684

1108
