Technical Specification:
Size: DN1”-DN2”
Pressure:Thread
Design:DIN3352
Thread End Connection: NPT,BSPT
Hydraulic test: EN12266；ISO 5208
Seat Test:17.6bar
Shell Test:24bar
| ■ Features: | |
| • Angle type • Bolted bonnet • Thread end • Thread bonnet available • Surface treatment:RAL5017 Epoxy coating • Max. temperature 100 ºC |  |

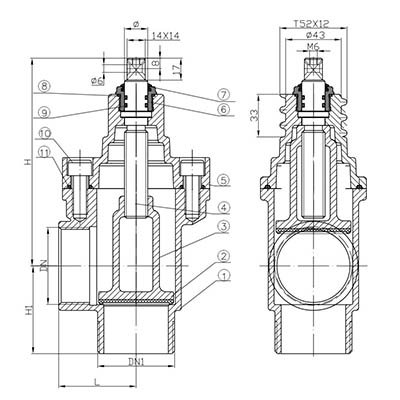

■ MATERIAL LIST
Item No. | Part Name | Specification |
1 | Body | Ductile Iron GGG50 |
2 | Wedge | EPDM/NBR |
3 | Bracket | Ductile Iron GGG50 |
4 | Stem | SS X20Cr13 |
5 | Bonnet | Ductile Iron GGG50 |
6 | Sealing ring | Brass |
7 | Anti-dust cap | EPDM/NBR |
8 | Seal O-ring | EPDM/NBR |
9 | Stem O-ring | EPDM/NBR |
10 | Bolts | Carbon Steel |
11 | Gasket | EPDM/NBR |
■ Dimensions (mm)
DN | H | H1 | DN1 | L | φ |
1” | 125 | 55 | 1” | 47 | 16 |
1” | 125 | 55 | 1 1/4” | 47 | 16 |
1 1/4” | 125 | 55 | 1 1/4” | 47 | 16 |
1 1/2” | 161 | 68 | 1 1/2” | 60 | 18 |
1 1/2” | 161 | 68 | 2” | 60 | 18 |
2” | 161 | 68 | 2” | 60 | 18 |
