RG11-PE pipe Socket Ends PE Socket Ends Non-rising Resilient Seat Gate Valve

Technical Specification:

Size: DN50-DN300

Pressure:PE Socket

Valve design according to DIN 3352 / SABS 664

Face to face dimensions according to DIN 3202 F5/ SABS 664

Socket Ends dimensions comply ISO 4422 、 ISO 4422.2

Hydraulic test according to ISO5208

share:
Product Details
■ Features:

Outside stem and yoke (OS&Y)

Stem Seal with O-ring

Bolt bonnet, Full bore

Rubber encapsulated wedge, Brass Wedge Nut.

Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick

Working pressure 250 PSI/17.2 Bar Non-Shock Cold

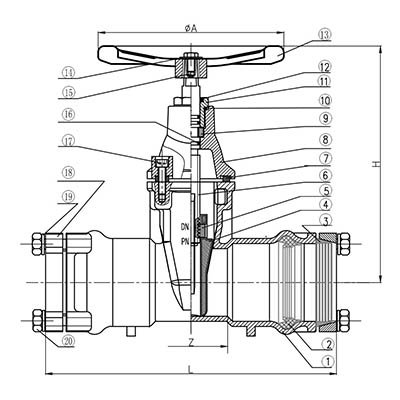

■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron EN- GJS- 500- 7

2

Wedge

Ductile Iron EN- GJS- 500- 7

3

Wedge Coating

NBR /EPDM EN 681-1

4

Wedge Nut

Copper Alloy

5

Stem

Stainless Steel X20 Cr13

6

Bonnet Gasket

NBR /EPDM EN 681-1

7

Bonnet

Ductile Iron EN- GJS- 500- 7

8

O Ring Back Sealing

EPDM/NBR

9

Stem Collar

Stainless Steel / Copper Alloy

10

O-Ring

EPDM/NBR

11

O-Ring

EPDM/NBR

12

Stuffing Nut

Copper Alloy

13

Dust Guard

EPDM/NBR

14

Hand Wheel

Ductile Iron EN- GJS- 500- 7

15

Stem Cap

Ductile Iron EN- GJS- 500- 7


■ Dimensions (mm)

Size



PIPE DIA.

L

L1

H

H1

W

W.T(kg )

F5

SABS



DN50

63

250

335

77

250

280

180

8

9.5

DN65

75

270

335

80

265

295

180

9

11

DN80

90

280

335

84

300

330

200

10

15

DN100

110

300

355

88

350

380

220

14

18

DN125

125

325

375

91

410

440

220

17

22

DN125

140

325

375

91

410

440

220

20

28

DN150

160

350

405

94

450

480

250

33

38

DN200

200

400

450

100

550

580

280

50

60

DN200

225

400

450

100

550

580

280

55

65

DN250

250

450

450

125

650

680

320

70

80

DN300

315

500

500

140

710

740

360

95

110
