RG04-F4-NRS Gland Type DIN3352 / EN 1171 Resilient Seated Gate Valve Gland Type

Technical Specification:

Size: DN50-DN600

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

share:
Product Details
■ Features:

• Bolted Bonnet

• Replaceable O-ring

• Rubber encapsulated wedge, Brass Wedge Nut.

• Surface treatment: RAL5017 FBE coated inside and outside

• Minimum thickness: 250 Micron

• Working pressure: 25 Bar

• Working temperature: -10 to +80 ºC

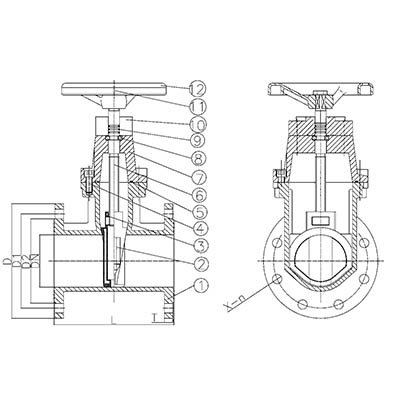

_0027_RG04-F4-NRS Gland Type drawing


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Wedge

Ductile Iron GGG50

3

Wedge Nut

Copper Alloy

4

Bolt

Carbon Steel

5

Gasket

EPDM

6

Stem

SS420

7

Bonnet

Ductile Iron GGG50

8

Holding Ring

Copper Alloy

9

O-ring

EPDM

10

Gland

Ductile Iron GGG50

11

Bolt

Carbon Steel

12

Hand Wheel

Ductile Iron GGG50


■ Dimensions (mm)

Size

L

D

b

EN 1092-2 PN10

EN 1092-2 PN16

H

W

W.T(kg )

F4

F5

D1

D2

n-d

D1

D2

n-d

F4

F5

DN50

150

250

165

19

125

99

4-19

125

99

4-19

195

160

9

10

DN65

170

270

185

19

145

118

4-19

145

118

4-19

225

180

12.5

13

DN80

180

280

200

19

160

132

8-19

160

132

8-19

255

200

13.5

15

DN100

190

300

220

19

180

156

8-19

180

156

8-19

285

200

17.6

19.4

DN125

200

325

250

19

210

184

8-19

210

184

8-19

345

220

24

28

DN150

210

350

285

19

240

211

8-23

240

211

8-23

385

250

29

33

DN200

230

400

340

20

295

266

8-23

295

266

12-23

465

280

47.5

57

DN250

250

450

400

22

350

319

12-23

355

319

12-28

565

320

74

88

DN300

270

500

455

24.5

400

370

12-23

410

370

12-28

645

350

106

115

DN350

290

550

520

26.5

460

429

16-23

470

429

16-28

762

450

166

235

DN400

310

600

580

28

515

480

16-28

525

480

16-31

836

450

210

240

DN450

330

650

640

30

565

530

20-28

585

548

20-31

957

640

260

420

DN500

350

700

715

31.5

620

582

20-28

650

609

20-34

1036

640

338/364

470

DN600

390

800

840

36

725

682

20-31

770

720

20-37

1188

640

523/563

700
