AIR VALVE 02 Combination kinetic Air Release Valves Thread End

Applicable Standards:

Size: in.½(15mm)-in.2(50mm)

Pressure: BS1074—PN10/PN16

Pipe Thread According to EN1074

Maximum Working Pressure  16Bar(1.6mpa)

Maximum Working Temperture  100℃

Screw Thread BSP/NPT

PAT: 20191692464.8

share:
Product Details
■ Tests:

• Hydraulic Test Acc To  BS1074—PN10/PN16/25

• Seat:1.1XPN.BODY:1.5Xpn  Operating Torque Test.

02

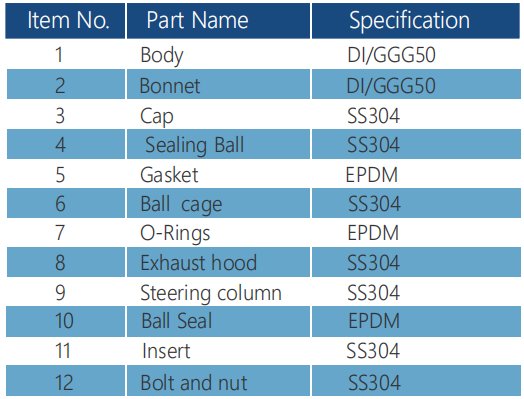

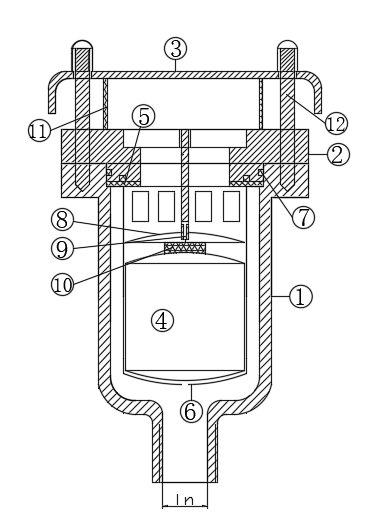

■ MATERIAL LIST



■ Dimensions (mm)

               BSP   screw thread

in.½

in.¾

in.1

in.1½

in.2

15

20

25

40

50

H=278

H=278

H=278

H=278

H=278
