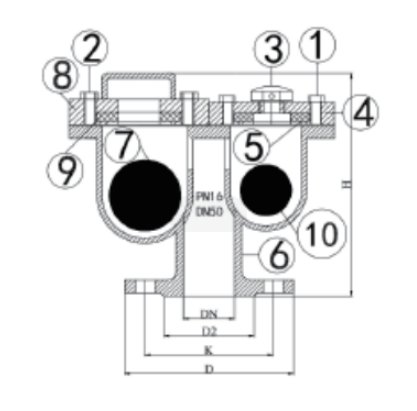

Air Valve 03 Double Orifice Air Valve Type A

Applicable Standards:

Size: in.2(50mm)-in.12(300mm)

Pressure: BS1074—PN10/PN16

Flange Drlledacc

To BS4504/EN1092-2

Face To Face Dimensionacc.

To BS4504/EN1092-2

Flange Raised Face Flange

Maximum Working Pressure 16Bar(1.6mpa)

Maximum Working Temperture 100℃

PAT: 20191692464.8

Applicable Standards:

Size: in.½(15mm)-in.2(50mm)

Pressure: BS1074—PN10/PN16

Pipe Thread According to EN1074

Maximum Working Pressure  16Bar(1.6mpa)

Maximum Working Temperture  100℃

Screw Thread BSP/NPT

PAT: 20191692464.8

Technical Requirement:

Size:DN50-DN300
Pressure: Air Valve Type A

Face to Face: DIN2533-PN16

Flanges standard:BS EN1092-2

Teats standard: BS EN 12266-1:2003

Technical Requirement:

Size:DN50-DN300

Pressure: Air Valve Type B

Face to Face: DIN2533-PN16

Flanges standard:BS EN1092-2

Tests standard:  Bs En 12266-1:2003
