Applicable Standards:
Size: in.2(50mm)-in.12(300mm)
Pressure: BS1074—PN10/PN16
Flange Drlledacc
To BS4504/EN1092-2
Face To Face Dimensionacc.
To BS4504/EN1092-2
Flange Raised Face Flange
Maximum Working Pressure 16Bar(1.6mpa)
Maximum Working Temperture 100℃
PAT: 20191692464.8
| ■ Tests: | |
• Hydraulic Test Acc To BS1074—PN10/PN16 • Seat:1.1XPN.BODY:1.5XPN Operating Torque Test. |  |
Flow Rate | |
SIZE | m³/h |
in.2(50mm) | 205 |
in.2½ (65mm) | 275 |
in.3(80mm) | 310 |
in.4(100mm) | 370 |
in.5(125mm) | 480 |
in.6(150mm) | 750 |
in.8(200mm) | 1450 |
in.10(250mm) | 2300 |
in.12(300mm) | 4200 |

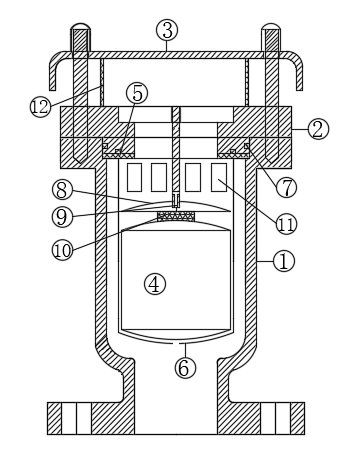

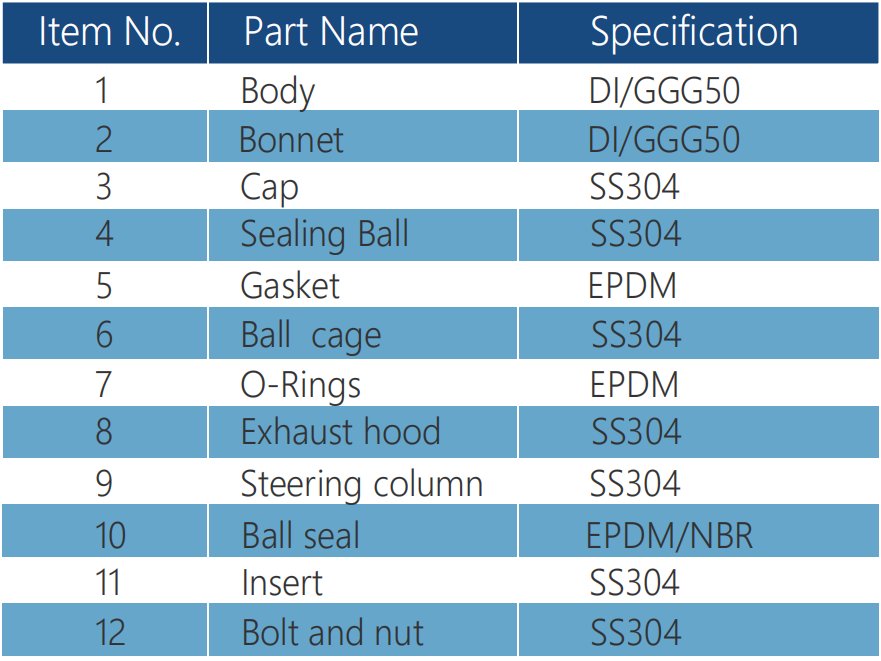

■ MATERIAL LIST
■ Dimensions (mm)
SIZE
| BS4504 PN10/EN1092-2 | BS4504 PN16/EN1092-2 | H | ||||||||
D | D1 | b | Z-фd | Do | D | D1 | b | Z-фd | Do | ||
in.2(50mm) | 165 | 125 | 20 | 4-19 | 155 | 165 | 125 | 20 | 4-19 | 155 | 285 |
in.2½ (65mm) | 185 | 145 | 20 | 4-19 | 155 | 185 | 145 | 20 | 4-19 | 155 | 285 |
in.3(80mm) | 200 | 160 | 20 | 4-19 | 210 | 200 | 160 | 20 | 8-19 | 210 | 365 |
in.4(100mm) | 220 | 180 | 22 | 8-19 | 220 | 220 | 180 | 22 | 8-19 | 220 | 397 |
in.5(125mm) | 250 | 210 | 22 | 8-22 | 220 | 250 | 210 | 22 | 8-22 | 220 | 485 |
in.6(150mm) | 285 | 240 | 24 | 8-22 | 270 | 285 | 240 | 24 | 8-22 | 270 | 495 |
in.8(200mm) | 340 | 295 | 24 | 8-22 | 280 | 340 | 295 | 24 | 8-22 | 280 | 565 |
in.10(250mm) | 395 | 350 | 26 | 12-25 | 280 | 395 | 350 | 26 | 12-25 | 280 | 735 |
in.12(300mm) | 445 | 400 | 26 | 12-25 | 320 | 445 | 400 | 26 | 12-25 | 320 | 745 |
