Air Valve 04 Double Orifice Air Valve Type B

Technical Requirement:

Size:DN50-DN300

Pressure: Air Valve Type B

Face to Face: DIN2533-PN16

Flanges standard:BS EN1092-2

Tests standard:  Bs En 12266-1:2003

share:
Product Details
■ Specification:

Nominal pressure(Mpa):1.6

Testing pressure(Mpa):Shell2.4、 Seal1.76

Working pressure(Mpa):1.6

Suitable temperature(℃):≤80

Suitable mendium:Water

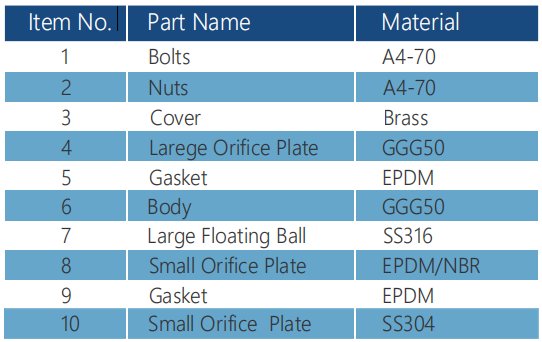

■ MATERIAL LIST

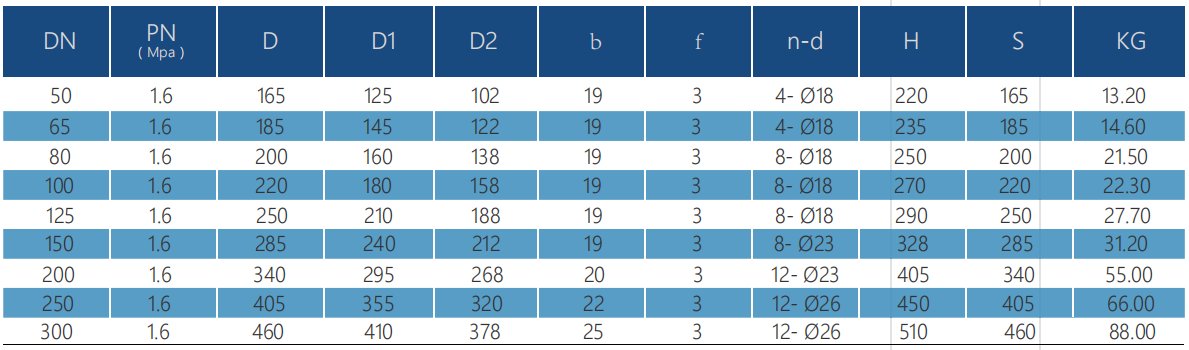

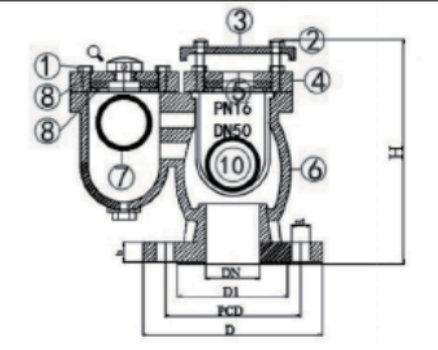

■ Dimensions (mm)
