CV02-45°Flap Check Valve 45°Flap Check Valve

Technical Specification:

Size: DN50-DN700

Pressure:45°Flap Check Valve

Design:BS EN5153

Face to Face: BS5153/ASME B16.10/DIN F6

Flanges:EN1092-2/ ASME B16.1/B16.42

Hydraulic test: EN12266-1

Seat Test:11/17.6bar

Shell Test:15/24bar


share:
Product Details


■ Features:
• Bolted Bonnet

• 45°Flap Type

• Suitable Medium: Clear water,sewage,air

• Surface treatment:RAL5017 FBE Coated

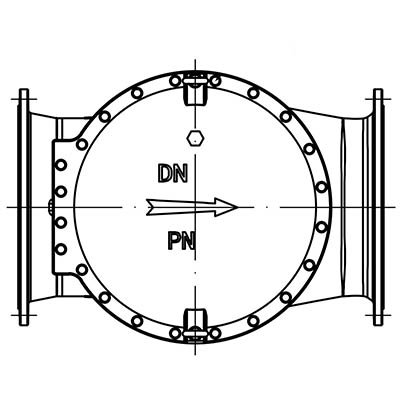

_0012_CV02-45°Flap Check Valve A

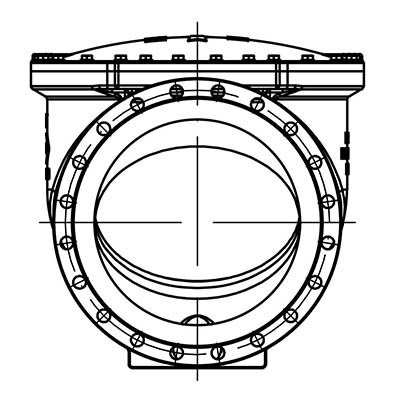

_0011_CV02-45°Flap Check Valve B_0010_CV02-45°Flap Check Valve C



■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Falpper

WCB+EPDM

3

Bonnet Gasket

EPDM

4

Bonnet

Ductile Iron GGG50

5

Pin

SS X20Cr13/420

6

Bolt

C45E/1045

7

Washers

C45E/1045

8

Nuts

C45E/1045


■ Dimensions (mm)

Size

L

H

EN 1092-2 PN10/16

ASME B16.1/B16.42

AS4087

DIN-F6

BS5153

ASME B16.10

D

K

n-d

D

K

n-d

D

K

n-d

DN50

200

203

203

90

165

125

4-19

152

120.5

4-19

-

-

-

DN65

240

216

216

100

185

145

4-19

178

139.5

4-19

-

-

-

DN80

260

241

241

115

200

160

8-19

191

152.5

4-19

185

146

4-18

DN100

300

292

292

120

220

180

8-19

229

190.5

8-19

215

178

4-18

DN125

350

330

330

140

250

210

8-19

254

216

8-19

-

-

-

DN150

400

356

356

150

285

240

8-23

279

241.5

8-22

280

235

8-18

DN200

500

495

495

220

340

295

8-23/12-23

343

298.5

8-22

335

292

8-18

DN250

600

622

622

260

395/405

350/355

12-23/12-28

406

362

8-22

405

356

8-22

DN300

700

698

698

300

445/460

400/410

12-23/12-28

483

432

12-25

455

406

12-22

DN350

800

787

787

375

505/520

460/470

16-23/16-28

533

476

12-25

525

470

12-26

DN400

900

914

914

400

565/580

515/525

16-28/16-31

597

540

12-28

580

521

12-26

DN450

1000

965

-

430

615/640

565/585

20-28/20-31

635

578

16-28

640

584

12-26

DN500

1100

1067

-

470

670/715

620/650

20-28/20-34

699

635

16-32

705

641

16-26

DN600

1300

1219

-

550

780/840

725/770

20-31/20-37

813

749

20-32

825

756

16-30

DN700

-

1448

-

600

895/910

840

24-31/24-37

-

-

20-35

910

845

20-30
