CV06-Silent Check Valve DIN F4 PN10/PN16 Silent Check Valve

Technical Specification:

Size: DN50-DN200

Pressure: PN10/PN16

Design:DIN F4

Face to Face: DIN3202 F4

Flanges:EN1092-2 PN10/16

Hydraulic test: EN12266;ISO 5208

Seat Test:11/17.6bar

Shell Test:15/24bar

share:
Product Details
■ Features:
• Original design from Germany

• Brass guide and disc

• Rubber Seated

• Surface treatment:RAL5017 FBE Coated

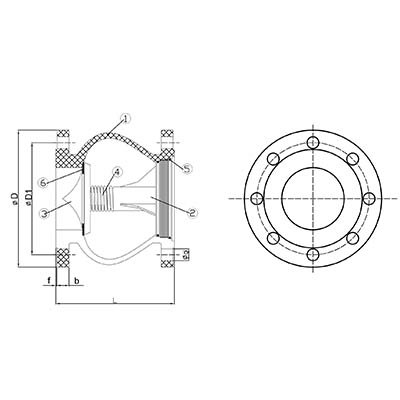

_0005_CV06-Silent Check Valve drawing


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Guide

Brass C95400

3

Disc

Brass C95400

4

Spring

SS304

5

O-Ring

NBR/EPDM

6

Gasket

EPDM


■ Dimensions (mm)

Size

L

D

b

f

EN 1092-2 PN10

EN 1092-2 PN16

D1

D2

n-d

D1

D2

n-d

DN50

150

165

19

2

125

99

4-19

125

99

4-19

DN65

170

185

19

2

145

118

4-19

145

118

4-19

DN80

180

200

19

2

160

132

8-19

160

132

8-19

DN100

190

220

19

2

180

156

8-19

180

156

8-19

DN125

200

250

19

2

210

184

8-19

210

184

8-19

DN150

210

285

19

4

240

211

8-23

240

211

8-23

DN200

230

340

19

4

295

266

8-23

295

266

12-23
