CV04-SCV BS5153 BS5153 PN10/PN16 Swing Check Valve

Technical Specification:

Size: DN50-DN400

Pressure: PN10/PN16

Design:BS5153

Face to Face: BS5153

Flanges:EN1092-2 PN10/16

Hydraulic test: EN12266;ISO 5208

Seat Test:11/17.6bar

Shell Test:15/24bar

share:
Product Details


■ Features:
• Bolted Bonnet

• With lever and Weight

• Both Rubber Seated and Metal Seated

• Surface treatment:RAL5017 FBE Coated

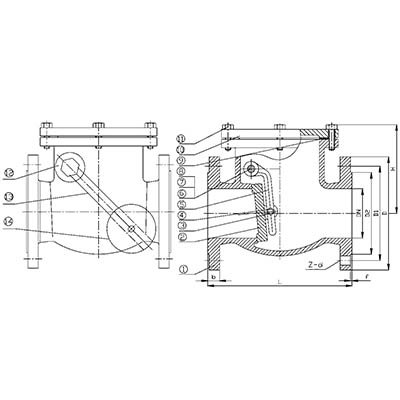

_0007_CV04-SCV BS5153



■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Disc

GGG50+EPDM/Brass

3

Washer

SS420

4

Locking Nut

Ductile Iron GGG50

5

Arm

Ductile Iron GGG50

6

Hinge Pin

SS420

7

Plug

SS420

8

O-Ring

NBR

9

Gasket

NBR

10

Bonnet

Ductile Iron GGG50

11

Bolt

A2-70

12

Gland

SS420

13

Lever

Ductile Iron GGG50

14

Hammer

Ductile Iron GGG50


■ Dimensions (mm)

Size

L

D

b

EN 1092-2 PN10

EN 1092-2 PN16

H

W.T(kg )

D1

D2

n-d

D1

D2

n-d

DN50

203

165

19

125

99

4-19

125

99

4-19

137

14

DN65

216

185

19

145

118

4-19

145

118

4-19

147

17

DN80

241

200

19

160

132

8-19

160

132

8-19

159

21

DN100

292

220

19

180

156

8-19

180

156

8-19

180

27

DN125

330

250

19

210

184

8-19

210

184

8-19

203

38

DN150

356

285

19

240

211

8-23

240

211

8-23

223

49

DN200

495

340

20

295

266

8-23

295

266

12-23

258

82.5

DN250

622

400

22

350

319

12-23

355

319

12-28

290

117

DN300

698

455

24.5

400

370

12-23

410

370

12-28

325

164

DN350

787

520

26.5

460

429

16-23

470

429

16-28

388

-

DN400

914

580

28

515

480

16-28

525

489

16-31

420

-
