CV03-SCV F6&BS5153 DIN3202 F6 PN10/PN16 Swing Check Valve

Technical Specification:

Size: DN40-DN300

Pressure: F6 PN10/PN16

Design:DIN3352

Face to Face: DIN3202 F6;BS5153

Flanges:EN1092-2 PN10/16

Hydraulic test: EN12266;ISO 5208

Seat Test:11/17.6bar

Shell Test:15/24bar

share:
Product Details
■ Features:

• Bolted Bonnet

• Full Port Design

• Both Rubber Seated and Metal Seated

• Surface treatment:RAL5017 FBE Coated

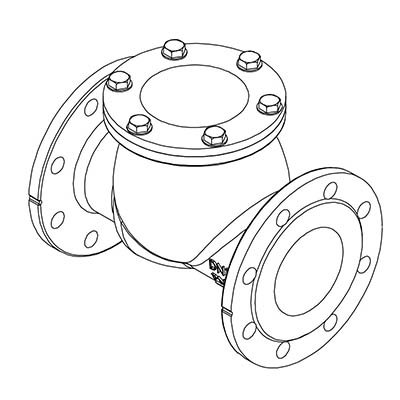

_0009_CV03-SCV F6&BS5153 1_0008_CV03-SCV F6&BS5153 2

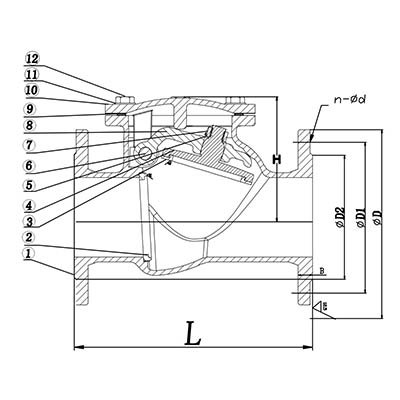

■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Valve Seat

Brass(Hpb59-1)/EPDM

3

Seal Ring

Brass(Hpb59-1)/EPDM

4

Disc

Ductile Iron GGG50

5

Galvanized Gasket

SS 2Cr13

6

Pin

SS 2Cr13

7

Nut

Carbon Steel Zinc Plated

8

Rocker Arm

Ductile Iron GGG50

9

Seal Gasket

NBR

10

Bonnet

Ductile Iron GGG50

11

Galvanized Gasket

Carbon Steel Zinc Plated

12

Bolt

Carbon Steel Zinc Plated


■ Dimensions (mm)

Size

L

D

B

EN 1092-2 PN10

EN 1092-2 PN16

H

W.T(kg )

F6

BS5153

D1

D2

n-d

D1

D2

n-d

DN40

180

203

150

17

110

84

4-19

110

84

4-19

103

9.5

DN50

200

203

165

17

125

99

4-19

125

99

4-19

116

10.6

DN65

240

216

185

17

145

118

4-19

145

118

4-19

116

13

DN80

260

241

200

18

160

132

8-19

160

132

8-19

145

15.8

DN100

300

292

220

18

180

156

8-19

180

156

8-19

145

19

DN125

350

330

250

20

210

184

8-19

210

184

8-19

175

28.6

DN150

400

356

285

22

240

211

8-23

240

211

8-23

204

41

DN200

500

495

340

23

295

266

8-23

295

266

12-23

248

64.3

DN250

600

622

400

24

350

319

12-23

355

319

12-28

292

93

DN300

700

698

455

26

400

370

12-23

410

370

12-28

325

130
