FOOT VALVE 02 FOOT VALVE DN350-DN800

Technical Specification:

Size: DN350-DN800

Pressure:FOOT VALVE DN350-DN800

Face to Face:DIN2533 PN16

Flanges:EN1092-2 PN16

Hydraulic test:BS EN12266-1 CLASS A

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details

■ Features:
• Square body

• Stainless steel screen

• Bolted bracket support

• Flange ends

• Surface treatment:RAL5017 FBE Coated

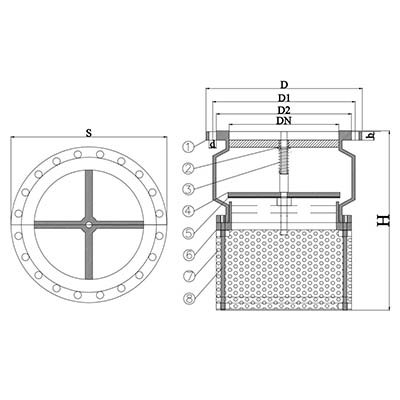

_0039_FOOT VALVE 02 DN350-DN800


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Shaft Sleeve

Brass

3

Regulation Spring

SS304

4

Disc

Ductile Iron GGG50

5

Disc Sealing

NBR

6

Bonnet

Ductile Iron GGG50

7

Screen

SS304

8

Shaft Bracket

Carbon Steel


■ Dimensions (mm)

Size

D

EN 1092-2 PN16

b

f

H

S

W.T(kg )

D1

D2

n-d

DN350

520

470

438

16-28

27

3

650

520

139

DN400

580

525

490

16-31

28

3

750

580

168

DN450

640

585

550

20-31

30

3

850

640

213

DN500

715

650

610

20-34

31

3

950

715

275

DN600

840

770

725

20-37

36

5

1000

840

380

DN700

910

840

793

24-37

40

5

1050

910

480

DN800

1025

950

900

24-41

43

5

1100

1025

650
