FOOT VALVE 01 FOOT VALVE DN50-DN300

Technical Specification:

Size: DN50-DN300

Pressure:FOOT VALVE DN50-DN300

Face to Face:DIN2533 PN16

Flanges:EN1092-2 PN16

Hydraulic test:BS EN12266-1 CLASS A

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Round body

• Stainless steel screen

• Bolted bracket support

• Flange ends

• Surface treatment:RAL5017 FBE Coated

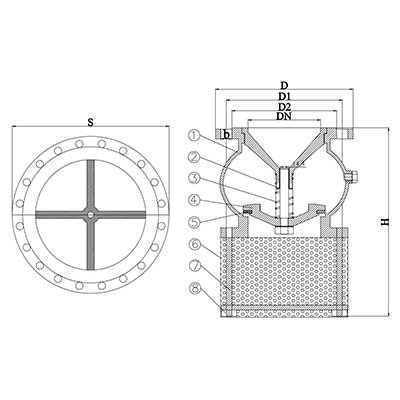

_0000_FOOT VALVE 01 DN50-DN300


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Shaft Sleeve

Brass

3

Regulation Spring

SS304

4

Disc

Ductile Iron GGG50

5

Disc Sealing

NBR

6

Screen

SS304

7

Shaft Bracket

Carbon Steel

8

Bracket Bolt

Carbon Steel


■ Dimensions (mm)

Size

D

EN 1092-2 PN16

b

f

H

S

W.T(kg )

D1

D2

n-d

DN50

165

125

102

4-18

20

3

185

165

12

DN65

185

145

122

4-18

20

3

220

185

15

DN80

200

160

138

8-18

22

3

240

200

18

DN100

220

180

158

8-18

24

3

265

220

24

DN125

250

210

188

8-18

26

3

320

250

37

DN150

285

240

212

8-23

26

3

370

285

55

DN200

340

295

268

12-23

30

3

460

340

76

DN250

405

355

320

12-26

32

3

560

405

106

DN300

460

410

378

12-26

32

4

670

460

155
