BFV01-DIN3202 DIN BUTTERFLY VALVE BOTH WAFER AND LUG TYPE

Technical Specification:

Size: DN40-DN600

Pressure: BFV01-DIN3202

Design: DIN3202

Face to face:DIN3202 K1

Flange Drilling:EN1092-2

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Wafer and Lug Body Type

• 360°polished disc assures positive on-off

• One piece shaft or Two piece shaft

• Hard-backed Cartridge Seat or Edge-Boot Seat

• Actuator:Hand Lever;Worm Gear;Pneumatic/Electric;

• FBE Coated

_0018_BFV01-DIN3202 K1 1


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Disc

CF8M C95800

3

Seat

EPDM BUNA

4

Stem

SS410 SS431

5

Tapper Pin

SS316

6

End Cover

DI

7

Bushing

PTFE

8

Bushing

PTFE

9

O-Ring

NBR EPDM VITON

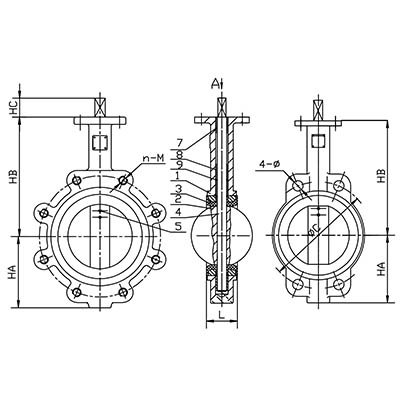

■ Dimensions (mm)

Size

L

HA

HB

HC

φ

φB

φC

N-M

φ

M

F

Flange






PN16


PN16

PN10

PN16

PN10

PN10




DN40

33

61

134

30

18

50

110

110

4-M16

4-M16

18

9

10

F05

DN50

43

76

162

30

18

70

125

125

4-M16

4-M16

18

9

10

F07

DN65

46

89

175

30

18

70

145

145

4-M16

4-M16

18

9

10

F07

DN80

46

95

181

30

18

70

160

160

8-M16

4-M16

18

9

10

F07

DN100

52

114

200

30

18

70

180

180

8-M16

8-M16

18

11

10

F07

DN125

56

127

213

30

18

70

210

210

8-M16

8-M16

18

14

10

F07

DN150

56

140

225

30

23

70

240

240

8-M20

8-M20

23

14

10

F07

DN200

60

173

260

36

23

102

295

295

12-M20

8-M20

23

17

12

F10

DN250

68

203

292

36

27

102

355

350

12-M24

12-M20

23

22

12

F10

DN300

78

242

337

36

27

125

410

400

12-M24

12-M20

23

22

14

F12

DN350

78

267

368

45

27

125

470

460

16-M24

16-M20

23

22

14

F12

DN400

84

298

400

51

30

165

525

515

16-M27

16-M24

27

27

22

F16

DN450

104

318

422

51

30

165

585

565

20-M27

20-M24

27

27

22

F16

DN500

127

349

479

64

33

165

650

620

20-M30

20-M24

27

27

22

F16

DN600

154

410

562

70

36

165

770

725

20-M33

20-M27

30

36

22

F16
