BFV07-Eccentric Type Double Offset Butterfly Valve

Technical Specification:

Size: DN80-DN2000

Pressure: BFV06-PTF

Design: DIN3202 F4/F16

Face to face: Series 13/14

Flange Drilling:EN1092-2 PN10/16

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:

• Eccentric Design

• Flange End

• Rubber Seated

• Actuator:Hand Lever;Worm Gear;Pneumatic/Electric;

• FBE Coated

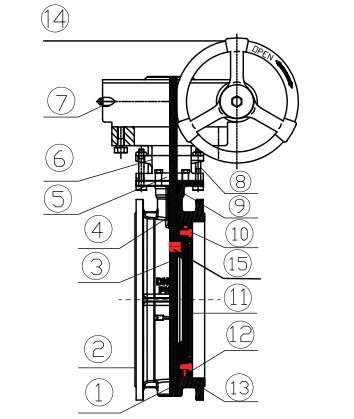

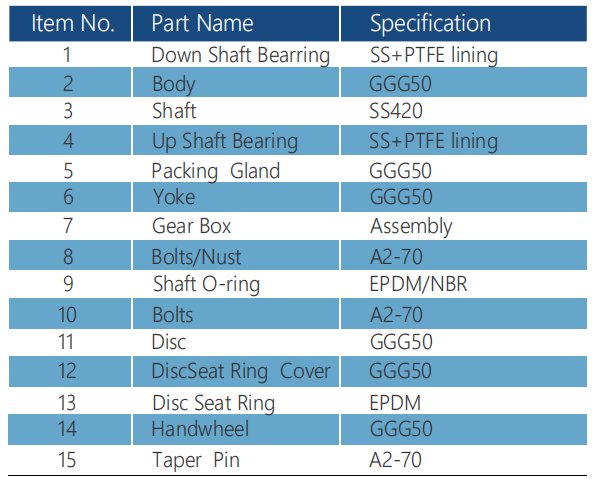

■ MATERIAL LIST

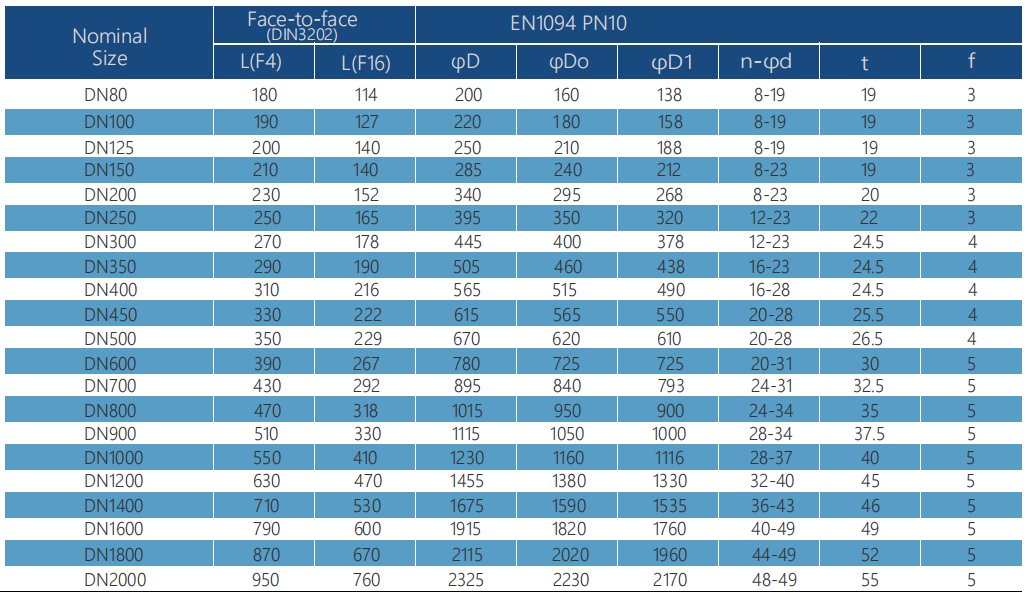

■ Dimensions (mm)
