Technical Specification:
Size: DN50-DN600
Pressure: BFV03-U FLANGE U
Design:BS5155
Face to Face: DIN3202 K1
Flanges:EN1092-2 PN16
Hydraulic test: DIN3030 PART3
Seat Test:17.6bar
Shell Test:24bar
| ■ Features: | |
• U flange type • 360°polished disc assures positive • on-off • One piece shaft or Two piece shaft • Hard-backed Cartridge Seat or Edge-Boot Seat • Actuator:Hand Lever;Worm Gear; Pneumatic/Electric; • FBE Coated |  |

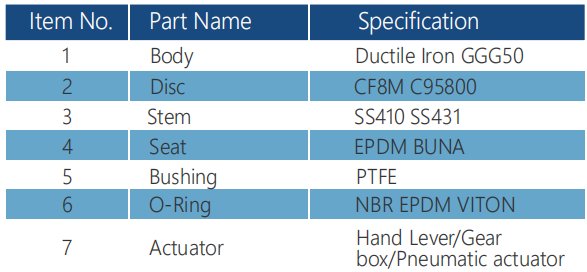

■ MATERIAL LIST

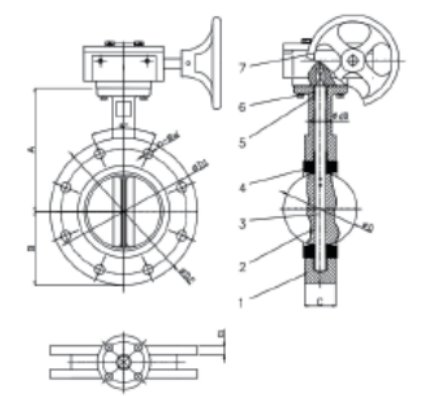

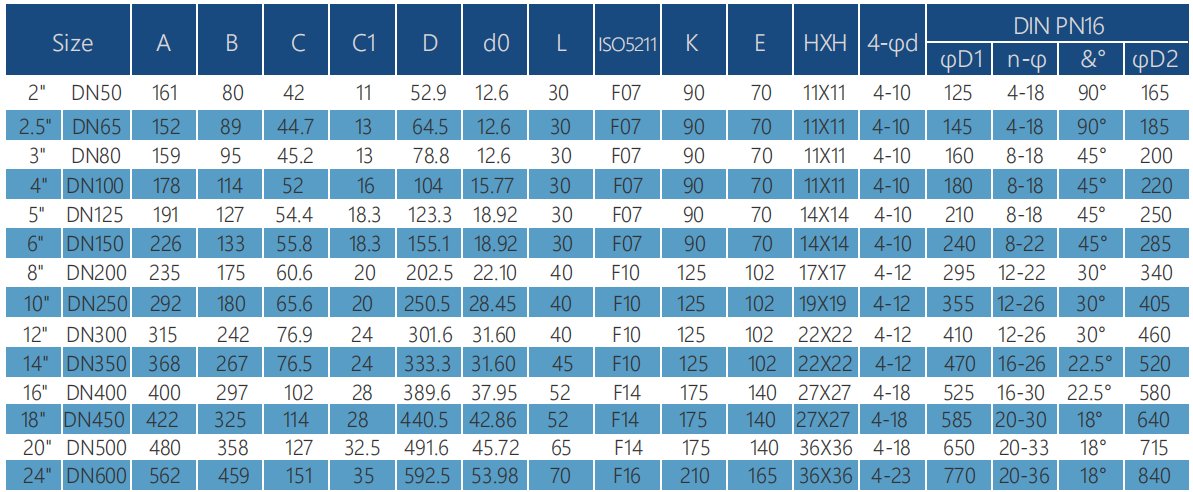

■ Dimensions (mm)
