Technical Specification:
Size: DN50-DN400
Pressure: BFV06-PTF
Design: API609
Face to face:ANSI B16.10
Flange Drilling:ANSI 125lb
Mounting pad:ISO5211
nspection and Test:API598
Seat Test: 17.6bar
Shell Test: 24bar
| ■ Features: | |
• Wafer and Lug Body Type • Full PTFE lined or Half PTFE Lined • Split Body Design • Actuator:Hand Lever;Worm Gear; Pneumatic/Electric; • Surface Treatment:FBE Coated |  |

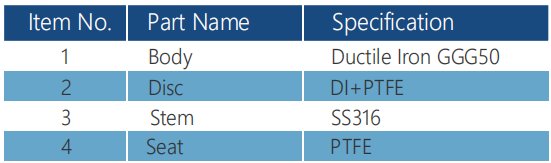

■ MATERIAL LIST

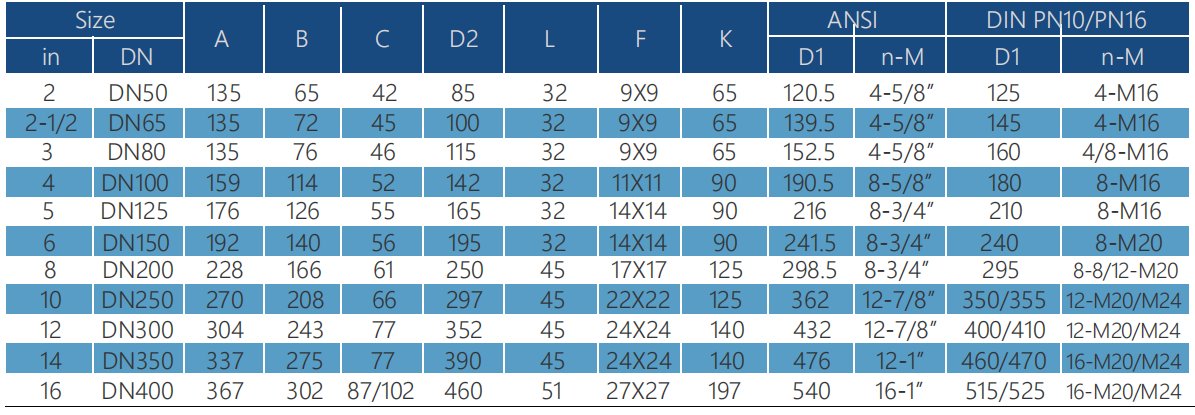

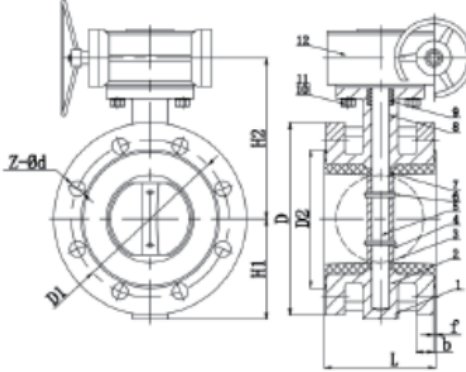

■ Dimensions (mm)
