Technical Specification:
Size: DN50-DN300
Pressure: BFV05-Groove
End to end: MSS SP-67
Dimension for Groove: ANSI/AWWA C606 TABLE 4
Mounting pad:ISO5211
Inspection and Test:API598
Seat Test: 17.6bar
Shell Test: 24bar
| ■ Features: | |
• Groove End • 360°polished disc assures positive on-off • Actuator:Hand Lever;Worm Gear; • Pneumatic/Electric; • Surface Treatment:FBE Coated |  |

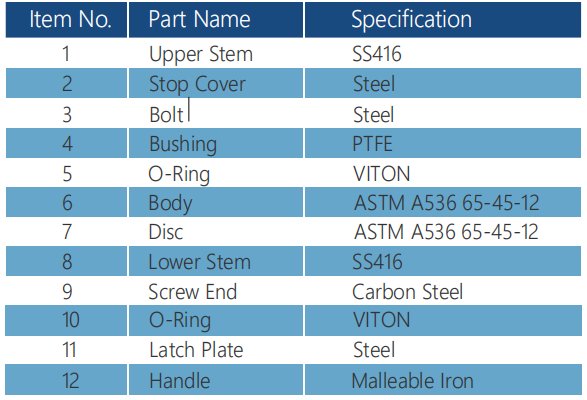

■ MATERIAL LIST

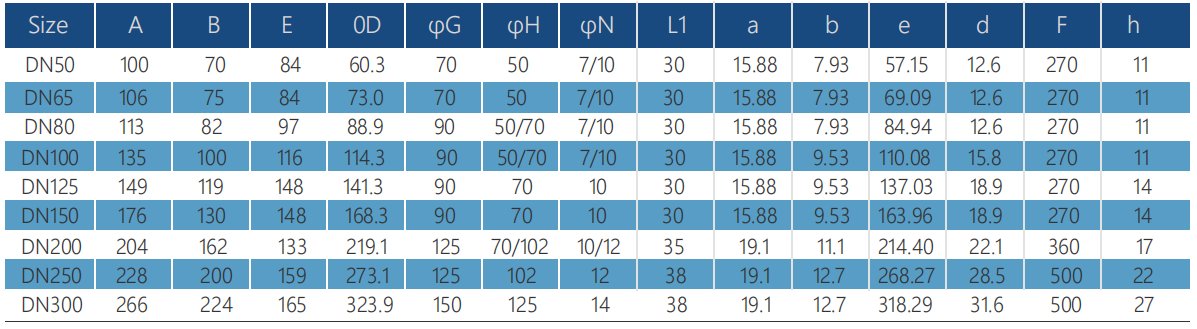

■ Dimensions (mm)
