BFV04-Flange Type Flange Type Butterfly Valve

Technical Specification:

Size: DN40-DN600

Pressure: BFV04-Flange

Design: ANSI

Face to face:ANSI B16.10

Flange Drilling:ANSI CL150

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

Inquire Now Add To Cart

Product Details

■ Features:

• Flange type

• 360°polished disc assures positive

• on-off

• One piece shaft or

• Two piece shaft

• Actuator:Hand Lever;Worm Gear; Pneumatic/Electric;

• FBE Coated

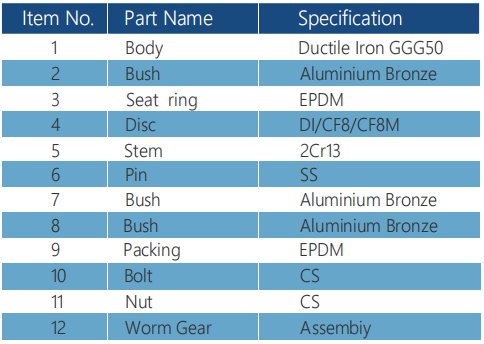

■ MATERIAL LIST

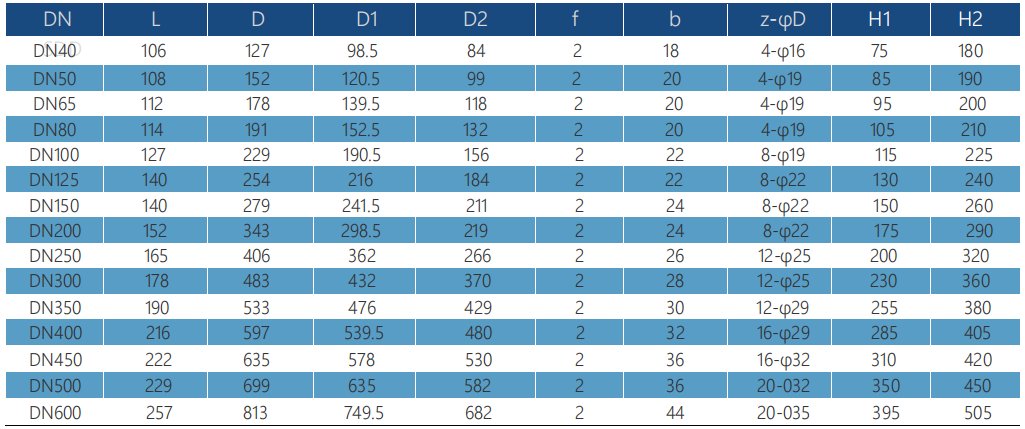

■ Dimensions (mm)
