BFV02-API609 API609 BUTTERFLY VALVE BOTH WAFER AND LUG TYPE

Technical Specification:

Size: DN40-DN1200

Pressure: BFV01-DIN3202

Design: API609

Face to face:ANSI B16.10

Flange Drilling:ANSI CL150

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

share:
Product Details
■ Features:
• Wafer and Lug Body Type

• 360°polished disc assures positive on-off

• One piece shaft or Two piece shaft

• Hard-backed Cartridge Seat or Edge-Boot Seat

• Actuator:Hand Lever;Worm Gear;Pneumatic/Electric;

• FBE Coated

_0016_BFV02-API609 1


■ MATERIAL LIST

Item No.

Part Name

Specification

1

Body

Ductile Iron GGG50

2

Disc

CF8M C95800

3

Seat

EPDM BUNA

4

Stem

SS410 SS431

5

Tapper Pin

SS316

6

Bushing

PTFE

7

O-Ring

NBR EPDM VITON

8



9

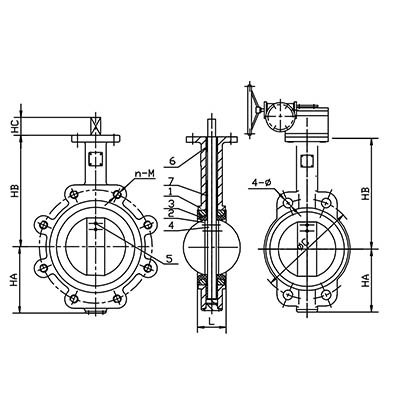

■ Dimensions (mm)

Size

L

HA

HB

HC

φ

φB

φC

N-M

M

F

Top Flange

2”

44.5

76

162

31

19

70

120.5

4-5/8”

11

10

F07

2.5”

47.5

83

173

31

19

70

139.5

4-5/8”

11

10

F07

3”

47.5

95

181

31

19

70

152.5

4-5/8”

11

10

F07

4”

54

114

200

31

19

70

190.5

8-5/8”

11

10

F07

5”

57

123

213

31

22

70

216

8-3/4”

14

10

F07

6”

57

136

225

31

22

70

241.5

8-3/4”

14

10

F07

8”

63.5

181

260

36

22

102

298.5

8-3/4”

17

12

F10

10”

70

209

292

36

25

102

362

12-7/8”

22

12

F10

12”

79

240

335

36

25

125

432

12-7/8”

22

14

F12

14”

79

267

368

45

29

125

476

12-1”

22

14

F12

16”

89

304

400

51

29

140

539.50

16-1”

27

22

F16

18”

108

318

422

51

32

140

578

16-1 1/8”

27

22

F16

20”

129

349

479

64

32

140

635

20-1 1/8”

27

22

F16

24”

156

410

562

70

35

254

749.5

20-1 1/4”

36

22

F16
