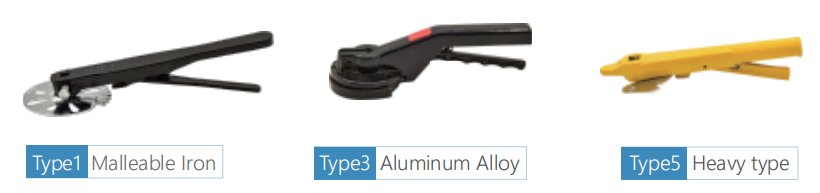

■ hand Lever

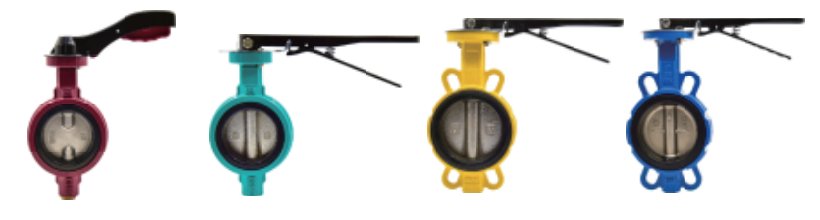

■ Other type of butterfly valves
Technical Specification:
Size: DN40-DN600
Pressure: BFV01-DIN3202
Design: DIN3202
Face to face:DIN3202 K1
Flange Drilling:EN1092-2
Mounting pad:ISO5211
Inspection and Test:API598
Seat Test: 17.6bar
Shell Test: 24bar
Size: DN40-DN1200
Design: API609
Face to face:ANSI B16.10
Flange Drilling:ANSI CL150
Size: DN50-DN600
Pressure: BFV03-U FLANGE U
Design:BS5155
Face to Face: DIN3202 K1
Flanges:EN1092-2 PN16
Hydraulic test: DIN3030 PART3
Seat Test:17.6bar
Shell Test:24bar
Pressure: BFV04-Flange
Design: ANSI
Size: DN50-DN300
Pressure: BFV05-Groove
End to end: MSS SP-67
Dimension for Groove: ANSI/AWWA C606 TABLE 4
Size: DN50-DN400
Pressure: BFV06-PTF
Flange Drilling:ANSI 125lb
nspection and Test:API598
Size: DN80-DN2000
Design: DIN3202 F4/F16
Face to face: Series 13/14
Flange Drilling:EN1092-2 PN10/16
